Schwarzmüller SDS 350 Gardine

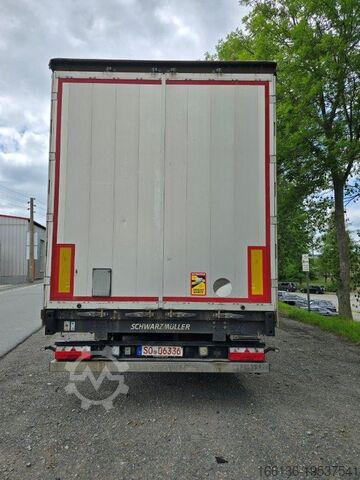

The images are archive photos; the vehicle may still be in use!

Chassis: Semi-trailer for haulage
Fine-grain steel welded construction
24 t landing gear, single-sided operation, with semi-circular lower section and straight mounting plate, with compensation slide
Extendable ladder at the rear
Side door retainers
Semi-shell mudguards over all axles
Anti-spray flaps behind the 3rd axle
2 rear impact buffers
1 large plastic toolbox mounted on the right-hand side, 2 smaller plastic toolboxes on the left-hand side
Perimeter tarpaulin rope with 2 holders on the front wall (not customs-sealed)

Axles & Suspension:
SAF disc brake axles
Air suspension

Ijdpfxewyiyge Aqqsib
Brake System:
2-line compressed air brake system
Spring-loaded parking brake
2 foolproof coupling heads at the front, without connecting hose
EBS – electronic braking system with EBS socket at the front, no connecting cable

Attention: The trailer may only be towed by tractor units that ensure the effectiveness of ABS!
With lifting and lowering valve
Vehicle stability control system

Wheels and Tires:
385/55 R22.5”, brand at manufacturer’s discretion
Steel rims, factory silver

Electrics:
24 Volt, multi-chamber lights, yellow LED side lighting
2 white LED position lights at the front
2 white/red LED contour marker lights at the rear
2 x 7-pin foolproof sockets at the front, no connecting cables

Front wall / Front corner posts:
2 at 580 mm high, steel volume-type corner posts, release device for side curtain on front wall

Rear wall / Rear corner posts:
Steel corner posts at the rear up to the lower edge of the roof, curtain hooks with round tube and curtain tensioning ratchet
Rear portal doors, 2-leaf, each with 2 interior rotary bar locks

Curtain:
Curtain with welded-in horizontal and vertical straps
Tension locks made of stainless steel

Roof:
Sliding roof, rear up-liftable, can be pushed from rear to front

Operating Instructions:
When configuring the tractor-trailer combination, observe the legally permitted overall vehicle height!
If the total height exceeds 4,000 mm, please note the following points:
- The haulage contractor is liable for any resulting damages.
- The transport driver must independently obtain a permit according to §29 StVO.
- We accept no liability for the transfer of vehicles.

Country of registration / plates:
Germany
Approval according to EC 2007/46
24/7 service hotline
Prepared for single-line license plate holder
Warning panel according to ECE - 70
A-sign
Reflective strips: white along the bottom of the side curtain, red in the corners at the top, continuous around the rear portal

Paintwork:
Frame – color per manufacturer's choice
Landing gear – black coated
Front wall – aluminum
Rear wall – white
Curtain – grey

Multiple units available!
