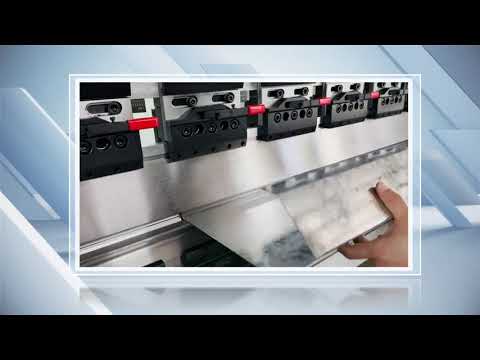

Pressmaster 160t/4000mm DA69T 8+1 axis

High-end electro hydraulic servo system, upper slider controller by the full loop synchronization.
Main servo motor guaranteed high efficiency, lower noise, energy saving.
Mechanical compensation on crowning of worktable and deformation compensation on throat,
ensuring bending strength and precision.
Qualified accessories used to ensure press brake’s long-term stability running.
Ball screw and linear guide adopted to ensure accurate and fast backgauge.
Movable front support helps with bending convenience.
2D and 3D multifunctional CNC system from Delem and Cybelec.
Equipped with side guards and closed rear guards.
8+1 axis/6+1 axis control
European technician service, installation, training

No. Name Parameter Unit
1 Nominal force 1600 KN
2 Worktable length 4000 mm
Hjdpfx Ahsy U Hmgjbsu
3 Worktable height 850 mm
4 Distance between vertical 3500 mm
5 Stroke 250 mm
6 Equipping die height 500 mm
7 Throat depth 400 mm
8 Control axes 8+1 Axes Y1, Y2, X1, X2, R1, R2, Z1, Z2+V
9 Y axis working speed Quick down 160 mm/s
Working 10 mm/s
Return 150 mm/s
10 Y axis repeat position accuracy ±0.01 mm
11 Main servo motor Power 18 KW
Brand INOVANCE
Speed 1500r/min
12 Work piece Precision Straightness 0.3 mm/m
Angle ±30’ /m
13
Back gauge
X axis Stroke 600 mm
Max. speed 200 mm/s
Repeat position accuracy ±0.02 mm
14 Back gauge
R axis Stroke 200 mm
Max. speed 150 mm/s
Repeat position accuracy ±0.05 mm
15 Dimension
(Approximate) Length 4000 mm
Width 1900 mm
Height 2600 mm
16 Weight(Approximate) 10500 Kg

No. Parts Name Brand Brand Location Remarks
1 Main servo motor INOVANCE China
2 Servo motor and drive INOVANCE China
3 Main Electrics Schneider France
4 Oil Cylinder HEYAN China TOP BRAND
5 Seal ring NOK Japan
6 Hydraulic valve
& Filter Rexroth BOSCH Germany
7 Pump Hawe Germany
8 Controller DA69T Netherlands
9 Toolings Cnstamp
10 Ball screw Hiwin China Taiwan
11 Guide rail Hiwin China Taiwan
12 Grating ruler GIVI ITALY
13 Footswitch Enchi China
14 Stop finger with linear guide YES
15 Crowing table Motorized
16 Front laser protection LNTECH CE standard
17 Side and Back doors with limit switch Schneider CE standard
