מסור פס הידראולי אופקי אוטומטי

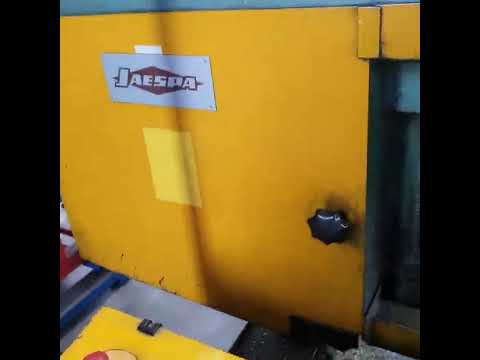

JAESPA W320 AZ/P

Automatic operation
Feed with position control,
min. Cut-off length 8 mm,
Feed stroke max. 400 mm, for cut-off lengths over 400 mm, the stroke is repeated until the set dimension is reached.
until the set dimension is reached. The cut-off length is displayed digitally.
The desired number of cuts can be preselected.
Sheet tear control,
Chip scraper brush,
chip conveyor,
roller conveyor, support length 3 m,
5 new saw bands
Cutting range round: 320 mm
Rectangular cutting area: 320 x 320 mm
Saw blade dimensions: 5250/5350 x 32 x 1.1 mm
Lodpepxnkgofx Aaxshn
Band speed: 15 - 110 m/min
Saw drive: 380 V, 4 kW
Weight: 2200 kg
Operating instructions,
electrical and hydraulic circuit diagrams,
Spare parts list
