GWDress-250 smartline CNC-SemiAutomatic

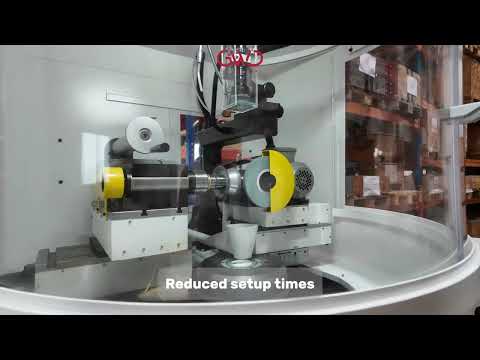

GWD Industrial GmbH GWDress-250 Smartline Dressing Machine

The GWDress-250 smartline is the intelligent solution for the precise dressing of grinding wheels up to Ø 250 mm. Thanks to selectable manual or automatic control, dressing processes can be designed with maximum flexibility and efficiency.

Performance Data:
Rotary axis & feed axis CNC controlled
Diamond Grinding Spindle: HSK-50 or customer-specific (e.g., SK-40, Perfect Arbor, etc.)
Max. Dressing Wheel Diameter: ø300 mm
Max. Dressing Wheel Width: 20 mm
Max. Grinding Wheel Diameter: up to ø250 mm
Grinding Wheel Speed: 0–1,500 rpm (infinitely variable)
Travel Range (Left/Right): 135 mm
Travel Range (Forward/Back): 135 mm
Dressing Wheel Diameter (Silicon Carbide): ø180 x 10 x ø32 mm
Swivel Range: approx. 98 degrees on both sides
Dressing Wheel Speed: 0–2,800 rpm (infinitely variable)
Dressing Wheel Oscillation Frequency: 0–50 strokes/min (infinitely variable)
Dressing Wheel Oscillation Length: 0–50 mm (adjustable)
Bwsdpfxsw E E S Ae Afxjw
X, Y Axis Optical Scale Resolution: 0.001 mm
Capabilities: Dressing of radii and wheel stacks (multi-wheel packs)
Power Supply: 380V, 50Hz; Total Power: approx. 1.5 kW
DXF Import: Included
Camera System: Included (with live transmission via 23" monitor)
Software: Latest generation GWDress-Studio with automatic AI measurement included
Country of Origin: Austria
