לחץ הידראולי

Wanzke GTA 250

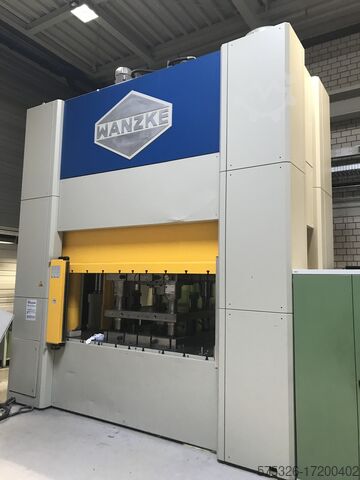

Hydraulic deep drawing press Wanzke GTA 250
year of construction 1995 used
Technical data:
Pressing force 2,500 kN
ram stroke 600 mm
Cedpfx Asup Skwjm Ejgt
ram speed working stroke 25 mm/s
Die cushion 1,600 kN
Die cushion stroke 235 mm
Table clamping surface 2,650 x 1,600 mm
Stroke limiting spindles 2 pcs.
Damping cylinders 2 pcs.
Drive power 75 kW
Press dimensions approx. width 4,250 mm (without cladding) depth 2,000 mm height 5,150 mm
Weight 55 to.
Table:
Holes for quills in the center of the press table. From there, the other holes
holes have a distance of 150 mm to the right and left
There is also a hole in the middle of the press table. The hole spacing
is also 150 mm. A maximum of 15 quills are possible lengthwise and 7 widthwise.
possible. Quill diameter: 30 mm
