מכונת רצועת קצוות דו-צדדית

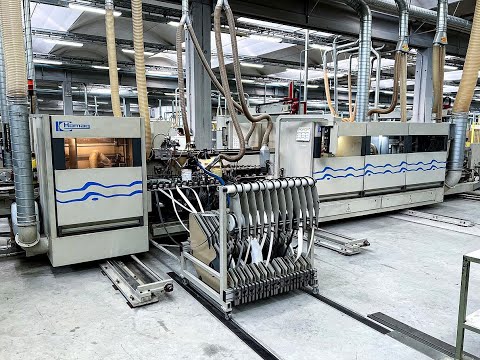

HOMAG KF 20/20/QA/15

TECHNICAL DETAILS

Max. feed speed: 40 m/min

Min. panel width: 240 mm
Max. panel width: 3,000 mm
Min. panel height: 8 mm
Max. panel height: 60 mm

Min. edge thickness: 0.4 mm
Max. edge thickness: 3.5 mm

UNITS

Sizing unit
Unit: double top and bottom pre-milling cutter
Model: KD 11
Motor power: 4.5 kW
Max. speed: 6000 rpm
Magazine for the coil
No. of positions: 12
Gluing system
Glue pot for polyurethane adhesive
Prefusor for polyurethane adhesive
Edge pressure roller conveyor

Edge processing unit 1
Unit: end trimming unit
No. of motors: 2

Edge processing unit 2
Unit: top trimming unit
No. of motors: 2

Edge processing unit 3
Unit: edge trimmer
No. of motors: 2

Edge processing unit 4
Unit: edge trimmer
No. of motors: 2

Edge processing unit 5
Unit: top trimming unit
No. of motors: 2
automatic engagement by time

Edge processing unit 6
Unit: profile scraper

Edge processing unit 7
Unit: glue scraper

Edge processing unit 8
Unit: brush
No. of motors: 2

EQUIPMENT
PUR gluing system
