מכבש הידראולי FAGOR Arrasate JBe 4000T

FAGOR Arrasate JBe 4000 2,5 x 2,5

Hydraulic press
FAGOR Arrasate - JBe 4000 2,5 x 2,5
MACH-ID 9872
Make: FAGOR Arrasate
Type: JBe 4000 2,5 x 2,5
Control: SIEMENS TOUCH
YOP: 2014

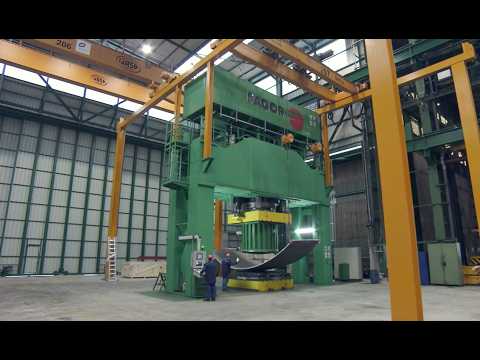

UNIQUE OPPORTUNITY FAGOR ARRASATE 4,000 TON HYDRAULIC FORMING PRESS
Complete with Special Tooling for Hot & Cold Forming for bending 2D and 3D Steel Segments
Unlike a conventional hydraulic press, this installation offers a specialized solution for manufacturers working with heavy steel plates, curved components and complex geometries where conventional plate rolling alone is insufficient.
DESIGNED FOR DEMANDING INDUSTRIAL APPLICATIONS


Pressure Vessels & Boilers – Forming heavy curved plates, vessel sections, heads and complex pressure-retaining components.

Heavy Steel Fabrication – Manufacturing large 2D and 3D formed parts that cannot be produced economically with conventional bending equipment.
Power Generation – Producing heavy formed components for conventional and next-generation energy installations.
Defence Industry – Manufacturing specialized heavy steel components requiring high forming forces and complex geometries.
Mach4Metal can support the complete project, including:
Technical inspection and evaluation
Professional dismantling and loading
Heavy lifting and international transport
Worldwide shipping and export coordination
Reinstallation and commissioning support
Operator training and technical assistance
Aditional Technical data
SIEMENS CNC Controll Panel
RAM cilinder diameter1900 mm
RAM Styroke 1600 mm
Large tooling package with Round dies
Large tooling with Sword / Shipyard Blocks
Vessel Boiler Dies
Middlel bridge with tool adapter
Tower with 6 x  Upper Dishing Dies Radius
Tower with 6 x Lower Dies
Max. tool weight 10 Ton
Max. tool weight 5 Ton ( half way)
Capacity Kg: 400000
Distance between column:8000mm
Table Length: 2500mm
Table Width: 2500mm
Ram stroke: 1600mm
Approche speed: 12000mm/min.
Working speed: 720mm/min.
Return speed: 12000mm/min.
Power: 368kW
Length: 4000mm
Lhodpj Ad Ughjfx Aaxsn
Width: 12320mm
Height: 13440mm
Weight: 480000kg
