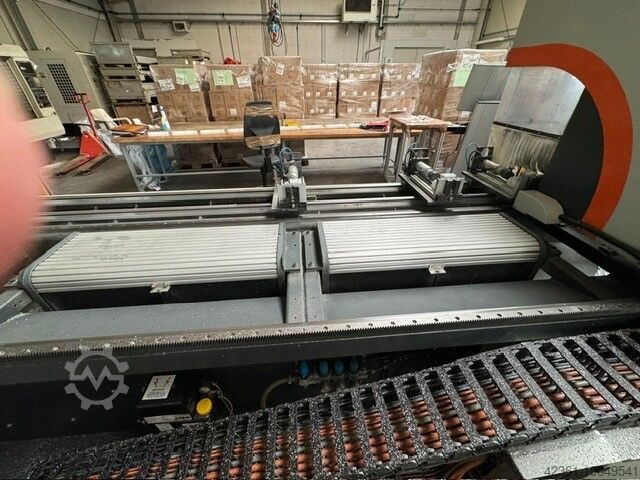

Profile machining center SBZ 122/33 eluCam

Elumatec SBZ122

SBZ 122/33 Profile Machining Center 3.8m, WK 4x90°, eluCam

Description:
Efficient machining of aluminum, plastic, and steel profiles
Working length: 3800 mm
Automatic clamp positioning
Complete profile machining with stationary profile bar to protect the profile's visible surface.
Latest generation CNC 3-axis control with industrial PC based on Windows XP
15" flat-screen monitor and 2 USB ports for online connectivity, barcode scanner, and label printer.
Network connection: RJ 45 10/100 MBit
User-friendly input via eluCam
3D visualization
Rapid positioning of the machining unit (up to 60 m/min) on the X-axis thanks to robust and low-wear direct drive.
High-resolution absolute encoders eliminate the need for axis referencing.

Technical Data:
X-axis travel: 3800 mm
Max. travel speed: 60 m/min
Y-axis travel: 350 mm
Max. travel speed: 30 m/min
Z-axis travel: 280 mm
Max. travel speed: 30 m/min
Max. machining length with end machining left and right: 3700 mm
Positioning accuracy: +/- 0.1 mm
Milling spindle speed: 1 – 24,000 rpm
Milling spindle output: 7.0 kW S1 with spindle return
Tool magazine for 6 tools (5 standard positions, 1 position for rotary angle head)
Tool holder: HSK F63

Included Accessories:
Automatic tool changer with 6 tool positions (without tools)
Blsdpfxjw Dzage Apbjp
Safety fences left and right
Light barrier at the front
4 horizontal pneumatic material clamping devices
Automatic clamp positioning
1 foldable material stop
Central chip extraction with chip box
Dosing spray device
Milling spindle with integrated rotation unit for angle head
Rotary angle head – 122 20 56 37 HSK-F63 for 2 tools
UPS (uninterruptible power supply)

Important:
The profile machining center is factory-equipped with a front light barrier system as standard. Lateral protection is provided by safety fences. Any necessary rear protection must be provided on-site or ask us for a quote for safety fences.

Includes:
Length measurement for profile bar
Additional automatic tool changer
Various used tool holders and milling cutters
