מכונת חיתוך בלייזר

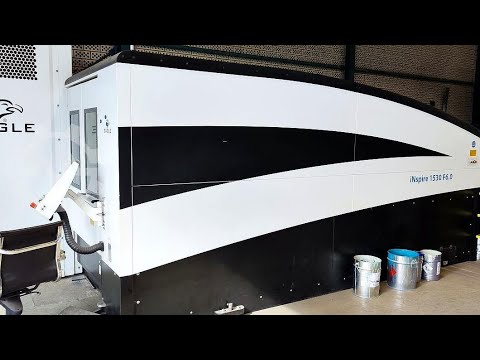

Eagle Laser Inspire 30158

The cutting head of the machine was overhauled by the manufacturer 9 months ago!

TECHNICAL DETAILS

X-axis travel: 3,060 mm
Y-axis travel: 1,540 mm
Z-axis travel: 120 mm

Laser power: 6,000 W
Laser wavelength: 1,070 nm
Working area: 3,000 x 1,500 mm

Positioning speed: 350 m/min
Maximum cutting speed (in parallel to X-, Y-, Z-axis): 150 m/min
Positioning: 280 m/min
Acceleration: 60 m/s²
Minimum programmable stroke: 0.001 mm/m
Repeatability: 0.03 mm/m
Cutting accuracy: 0.05 mm/m

MACHINE DETAILS

Control type: CNC control

Laser source model: IPG YLS-6000

Dimensions & Weight
Dimensions (L x W x H): 1,000 x 3,080 x 3,060 mm
System weight: 18,000 kg

Air pressure: 6 bar
Nitrogen pressure: N₂ 25 bar
Oxygen pressure: O₂ 10 bar

Control voltage: 24 V
Power requirement: 54 kVA
Main power supply: 400 V / 50 Hz

Operating hours
Beam emission time: approx. 4,400 h
Laser on-time: 19,855 h

EQUIPMENT
CE mark
Chiller unit
Emergency stop switch
Safety light barrier
Central lubrication system
Linear motors on all axes
Carbon crossbeam (traverse)
Composite frame
Pallet changer
Various nozzles
Protective lenses
