Posmill E 1100

POSmill E 1100 machining center ITNC 530 (2014)
Manufacturer: POSmill
Type: E 1100 machining center ITNC 530
Year of manufacture: 2014
Condition: used, good under power ready for demonstration, X-spindle NEW
Switch-on hours approx. 43,559h
Spindle hours approx. 15.789h

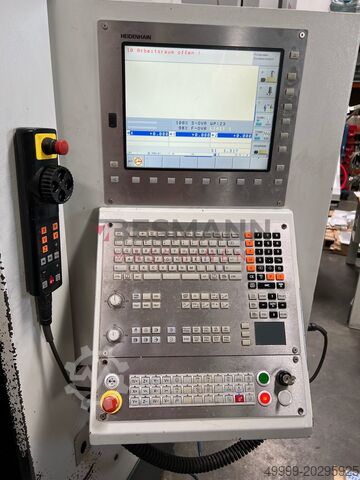

Control ITNC 530
Travels POsmill E 1100
X-axis 1100 mm
Y-axis 600 mm
Z-axis 510 mm
Rapid traverse up to 32 m/min
Ball screw drives up to 50 mm
Feed rate 1 - 10,000 mm/min.
Tool holder ISO 40
Speed, max. 10,000 rpm
Power, max. 25 kW
Iodpfx Acoxnpizo Uoic
Spindle/table distance 120-630 mm
Table dimensions 1300 x 600 mm
Distance floor/table approx. 855 mm
Load, max. 1,000 kg
Distance spindle/stand approx. 600 mm
Number of tools 60 pcs.
Tool length, max. 300 mm
Tool weight, max. 8 kg
Changing time from 5.5 s
Weight 8,500 kg
- Original documentation
- 3D measuring probe
- Belt filter system with IKZ 20 bar
- Water gun
- Air gun
- Machine feet
- Chip conveyor
- HR 410 handwheel
- Prepared for 4th & 5th axis

Note: Without vices
