מכונת השחזה לסכינים

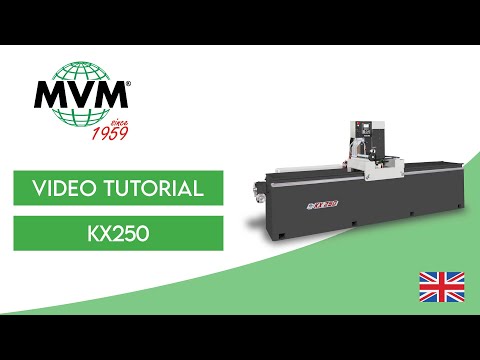

MVM KX 250 - 2100

1 as-new high-performance knife grinding machine MVM KX 250 – 2100 mm (ex-demonstration unit) * 1-year warranty

• Siemens touch screen PLC (control system, spare parts supply guaranteed by MVM)
• Grinding wheel motor 15 kW, 20 HP, 400V, 3-phase, 50 Hz
• Grinding wheel diameter: 250 mm
Dcsdsx Nhnhjpfx Af Rec
• Magnetic rotary table, adjustable from 0 to 90 degrees
• Magnetic table width: 150 mm
• Magnetic table length: 2100 mm
• Vernier indexer for magnetic table rotation +/- 90°
• Controls for rapid or slow downfeed of the grinding wheel
• Automatic feed controlled by Siemens PLC (0.001 – 0.1 mm)
• Fully automatic work cycle (rough grinding, fine grinding, sparking out)
• Variable carriage speed: 1 – 30 m/min
• Automatic lubrication of PTFE slideways
• Coolant injection at center of the grinding wheel plus 2 further nozzles on each side
• External coolant tank with pump
• Magnetic separator with discs for coolant cleaning
• Motorized quick-change flange for fast tool changeover
• Variable grinding wheel speed (adjustable to blade, machining phase [roughing, finishing, sparking out], and blade wear)
• Automatic approach to workpiece (HSS)
• LED lighting
• Dimensions: 4.12 x 1.50 x 1.75 m
• 1-year warranty
