MCM CLOCK 700 MP7

YEAR OF PRODUCTION: 2011

Technical specifications.
- Basic machine
Longitudinal stroke X = 700 mm
Vertical stroke Y = 650 mm
Transverse travel Z = 700 mm

- Tool magazine with 295 tool places HSK A63

- Continuous rotary table at 360,000 divisions 65 rpm

- 7-position multi-pallet from mm.500 x 500. Rotation footprint dia. 800 mm.

- Allowable load on each pallet table kg 550

- No.01 Operator's station for loading/unloading workpieces

- Spindle speed = 12,000 rpm

- Refrigeration unit for conditioning the spindle cartridge

- Spindle with provision for coolant supply through tool flange

- Air-conditioned electrical control unit with air conditioner

- Ecological protection working area and machine

- Lamp for work area lighting

- Scraping chip conveyor with rear exit

- Chip evacuation augers

- 750-l coolant collection tank with self-cleaning filter system;

- Sealed top guard prepared for connection with centralized fume extraction system

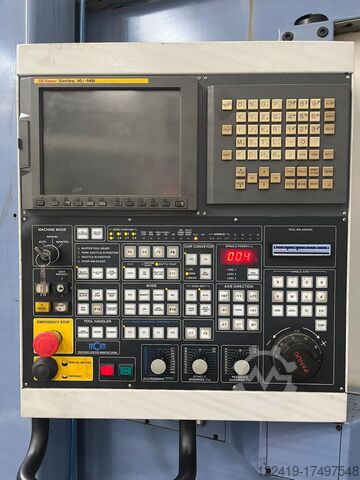

- CNC FANUC 16 I



Options included

- C301 Piece Washing

- C303 Tool Cone Washing

- C410 Tool Monitor MCM

- C305 Oil Remover

- C333 Automatic coolant filler

- C308 High pressure 65 Bar

- C403 Tool Presence Control By Laser

- C412 Balluff read/write system with JTERM-01

- C408 Marposs radio-frequency touch probe MIDA T36

- jFMX MCM supervisory system including Network Part Program
