מכונת כריכת ספרים Müller Martini EMP 513 (2021)

Müller Martini EMP 513

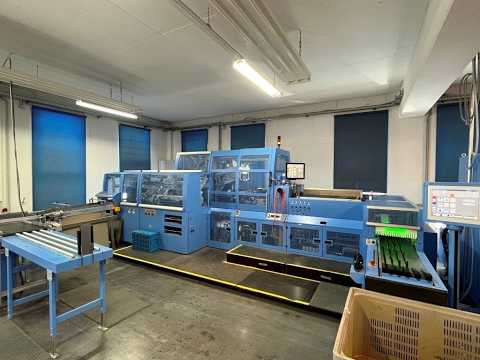

MULLER MARTINI Casing-In Machine EMP 513 type K317

year 2021

For casing-in of flat spine book blocks into hard covers, as well as subsequent pressing and joint-forming of books.

To be used as an individual machine.

Configuration:

copilot system with 2 touch screens

block supply via feeding conveyor and star feeder

case prestacking conveyor

case magazine

case bending machine

case forming station

casing-in gluing station with profile rollers and adjustable double glue application for the book joint area

glue circulation system with pump

EMP glue pump monitoring unit

rubbing down unit and thin book device

electronically heated 15° joint forming rails, controlled in pairs via regulator

quick-change system for joint forming rails

2 pressing stations

heater monitoring unit

servo-controlled drive technology based on Siemens SIMOTION D

delivery to the left, transport of books lying flat

Special equipment:

photo book block splitter

hotmelt nozzle gluing unit for joint gluing

NORDSON premelter

Code-Matching (comparison) between book block and case via data matrix code, barcode sensor: Cognex camera

double case control
Itedpfx Afsyr Hk Se Esd

special equipment for the processing of flexible cases

Technical specifications:

mechanical speed: up to 30 cycles/min

size range book block max.: 280 x 375 x 80 mm

size range book block max.: 305 x 375 x 30 mm

size range book block min.: 100 x 100 x 2 mm

size range opened case max.: 660 x 385 mm

size range opened case min.: 210 x 105 mm

thickness opened case max.: 7,0 mm

thickness opened case min.: 0,1 mm

size range finished book max.: 285 x 385 x 90 mm

size range finished book max.: 315 x 385 x 30 mm

size range finished book min.: 105 x 105 x 6 mm

KOLBUS Transport Conveyor System

year 2021
