IMA Combima/II/390/B/L12

IMA Combima/II/390/B/L12

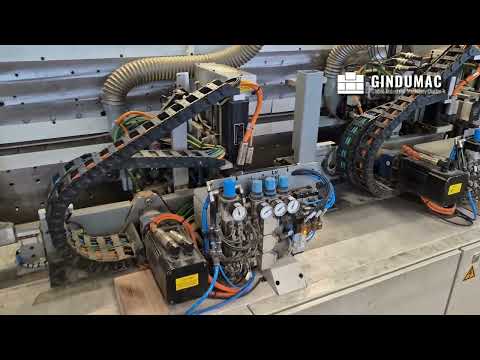

This IMA Combima/II/390/B/L12 was manufactured in 2010. A robust double-sided edgebander, it features a max feed width of 3,300 mm and handles workpiece thicknesses up to 60 mm. Equipped with ICOS OPEN control for precision, it supports both roll and strip edgebanding materials. Ideal for high-capacity environments requiring flexibility and reliability in edge finishing. Contact us for more information about this machine.

Additional equipment


• Gluing Unit for Hot-Melt Adhesive: Single roll/strip magazine for roll material up to 3 mm and strips up to 12 mm

• End Trimming Unit: 2 motors, each 660 W, pneumatic swiveling 0° + 25°

Machine Benefits

Technical Machine Benefits


• Min. Feed width: 244 mm (in longitudinal processing)

• Max. Feed width: 3300 mm

• Max. Workpiece width (with chain conveyor extension): 1300 mm

• Min. Workpiece thickness: 8 mm

• Max. Workpiece thickness: 45 mm (with copying function) / 60 mm (without copying)

• Max. Feed width: 3300 mm

• Fixed reference side: on the left in feed direction

Extra Information

Scoring Saw: 22 kW motor, 6000 rpm, pneumatically controlled
Rough Trimming Unit: 80 kW motor, 6000 rpm
Double Milling Unit: 2 motors, each 45 kW, 9000 rpm
Ffsdpfx Aox D I D Ajf Rsu
Flush Milling Unit: 2 motors, 1850 W, 12000 rpm
Multifunction Unit: NC-controlled with 2 motors, automatic tooling for 4 profiles
Buffing Unit: 2 motors, each 180 W, 1400 rpm
Grooving Unit: 45 kW motor, 9000 rpm

Control Unit
ICOS OPEN: PC-based control system with integrated PLC and electronic path control, user-friendly interface with Windows standards
