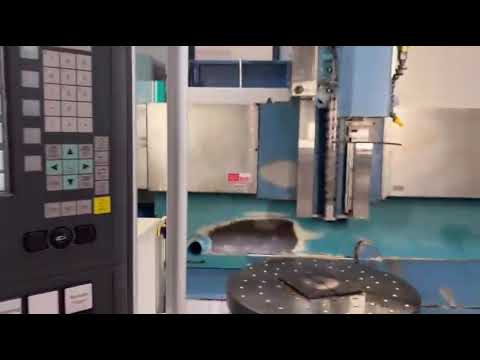

מחרטה אנכית

HESSAPP DV 62

Technical details:

turning diameter: 1000 mm
swing diameter: 1000 mm

Machine type: Vertical lathe
Manufacturer: Hessapp
Type: DV 62
Serial no.: 14.2308
Working range of the spindle
Largest diameter 1000 mm
Largest swing diameter 1000 mm
Cross slide travel
Stroke of the vertical slide 900 mm
Stroke of the horizontal slide 1810 mm
Total travel 2315 mm
Turning spindle
Spindle head with centering cone according to DIN 55021 A15
Spindle diameter in the front bearing 203 mm
Main drive
Via a controlled asynchronous motor and gear transmission
with range switching.
Spindle speeds
Speed ??range I: 5 - 350 rpm.
Speed ??range II: 30 - 1000 rpm.
Travel speed
X/Z axis: 10 m/min.
W1 axis: 8 rpm
No C-Axis

*
