מכונת חיתוך לרצועות (סְלִיטֵּר)

Duplo Corporation DC-646

Technical Specifications
Paper Size: Width: 210–370 mm, Length: 210–670 mm (extendable up to 1,000 mm)
Paper Weight: 110–350 g/m² (coated, uncoated, and laminated paper)
Processing Capacity per Sheet: Up to 8 longitudinal cuts (6 standard, expandable to 8 with an additional module), 30 cross cuts, and 20 creases in a single pass
Speed: 30 sheets per minute (A4, short-edge feeding, 2 cuts, 1 crease)
Feeding and Stacking: Input tray capacity: 100 mm; Output stacker capacity: 140 mm
Dimensions: 2,310 mm (W) × 1,005 mm (D) × 1,110 mm (H) – operating configuration
Weight: 275 kg
Connectivity: USB 2.0 with standard PC Controller software
Product Description

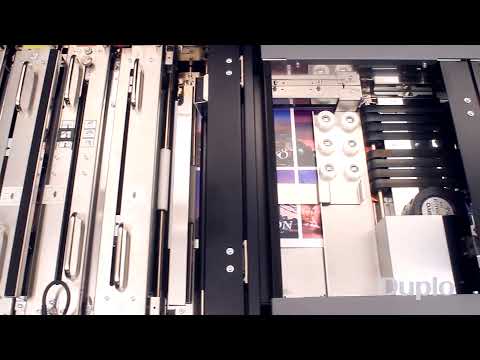

The Duplo DC-646 Slitter/Cutter/Creaser is a premium print finishing solution designed for medium- to high-volume digital print providers. Engineered to handle demanding production tasks with ease, it combines slitting, cutting, creasing, and optional perforating in a single pass, making it ideal for producing business cards, menus, brochures, and direct mail materials.
Gkodpjz Rz D Uefx Akzec

The DC-646’s advanced feeding system ensures accurate and reliable paper handling, while its CCD camera and barcode reader automate job setup for seamless production. Its modular design allows for customization, including the use of rotary tools for creasing and micro-perforating, providing print service providers with the flexibility to meet various finishing requirements.

With a processing speed of up to 30 sheets per minute, the DC-646 increases productivity while minimizing manual intervention. Equipped with PC Controller software and the ability to store an unlimited number of jobs, it enables quick job changeovers and consistently precise results, saving print service providers valuable time and resources while delivering professional-quality finished products.
