פורטל - מרכז עיבוד

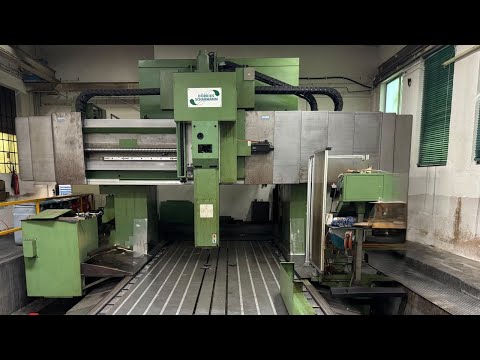

DOERRIES-SCHARMANN 3FZG 250-150-700

x-axis 7.300 mm
y-axis 3.100 mm
z-axis 1.250 mm
control Heidenhain
surface area B 2500 x L 7000 x H 750 mm
no. of flutes 13 Stück
flute distance 200 mm
groove width 28H8 mm
max. workpiece weight 4 t/m²
drive capacity - main spindle 40 kW
tool taper ISO 50
max. spindle tunring speed 4.000 U/min
work spindle adjustment 3600 mm
stroke senkrecht 1.250 mm
spindle diameter 120 mm
In our assessment, the machine is in good used condition and can be inspected under power by appointment.

Technical features & accessories:

Double-column gantry:
Gantry traverse speed 0–6,000 mm/min
Feed rate 12 m/min

Hnjdpfx Aszhcinsk Eor
- Heidenhain control system with handwheel
- Spindle extension (VFL)
- Angle milling head (WFKU)
- Tool magazine
- Auxiliary equipment magazine
- Schmipke cooling system
- Coolant tank
- Chip conveyor
- Hydraulic unit
- Oil cooler
- Operator platform
- Comprehensive documentation available
- Note: Operating conditions and installation layout in the appendix

Accessories, tools, and clamping devices shown are included in the scope of delivery
only if specified in the additional information.
Subject to change, errors in technical data/specifications, and prior sale.
