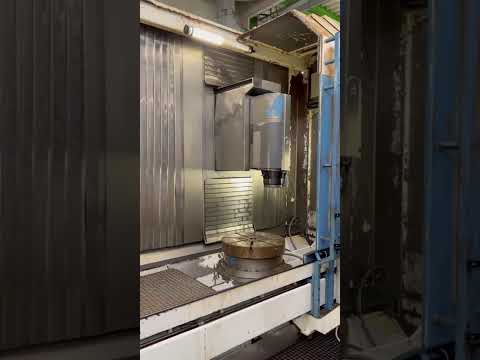

CNC milling machine, 6-axis

AXA VHC2 2360-XTS / 50

For sale is a 6-axis machining center from AXA, model VHC 2-2360-XTS / 50.

The machine is in good condition and fully functional, has only been used for light machining such as aluminium.

Blsdjyi Er Aopfx Afxjp
Of particular note: Each of the two NC tables allows clamping of workpieces up to Ø1,100 mm – see drawing. A fixed milling table can also be mounted. A high-speed spindle insert SK50 is available for this machine.

Technical data:
Year of manufacture: 2008
Controller: Heidenhain iTNC 530
Machine on: 50,236 hours
Spindle hours: 16,319
X-axis: 2,360 mm
Y-axis: 600 mm
Z-axis: 800 mm
Spindle taper: SK 50
Spindle power: 56 kW
Torque: 355 Nm
Tool changer: 52 positions on 2 chains

NC rotary tables (2 pieces)
Type: SKH-NC 7/T
Table plate: Ø 630 mm
Max. load: 750 kg
Clamping: Hydraulic

Dimensions:
5,650 mm x 3,700 mm x 3,200 mm
Weight: approx. 22,000 kg

Equipment: IC coolant system with 50 bar high-pressure pump, belt filter, Heidenhain RCN 729 measuring system, 3D probe Renishaw OMP 60, electronic handwheel, 2x Visiport (inspection windows), chip conveyor.

Tool holders are not included in the offer, but can be supplied at additional cost.

Transport and loading can be organized throughout Europe on request for an additional fee.

Prices are subject to VAT.

Inspection possible by appointment. Please contact us – our team is happy to assist you.
Trade-in or exchange possible!
