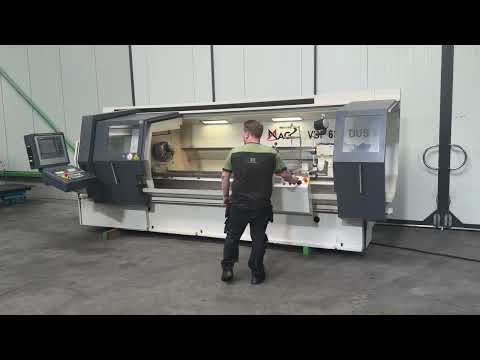

מחרטת CNC VDF BOEHRINGER DUS630Ti

VDF Boehringer DUS 630 Ti

CNC Lathe
VDF BOEHRINGER - DUS630Ti
MACH-ID 9628
Make: VDF BOEHRINGER
Kjdpfxjy T Hlms Agpelt
Type: DUS630Ti
Control: Heidenhain Manuel Plus
Year: 2013
Steady rest fixed 400 mm
Steady rest open 120 mm
ROHM 3 chuck  Ø 315
Multi Fix tool holder system with inserts
Manuel Plus controller


Swing over bed Ø: 640mm
Swing over cross slide Ø:385mm
DBC Turning Length: 2000mm
Spindle bore: 62mm
Spindle power: 22kW
Tailstock spindle Ø: 100Ø
Stroke pinole: 190mm
Spindle taper: 5Mk
Speeds / ranges: 2500Rpm
Feed rate X-Axis: 5000mm/min.
Feed rate Z-Axis: 10000mm/min.
Length: 5200mm
Width: 2100mm
Height: 2100mm
Weight: 8200kg
Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
