מלפף צינורות לתופים Peltoc HOHL 2400

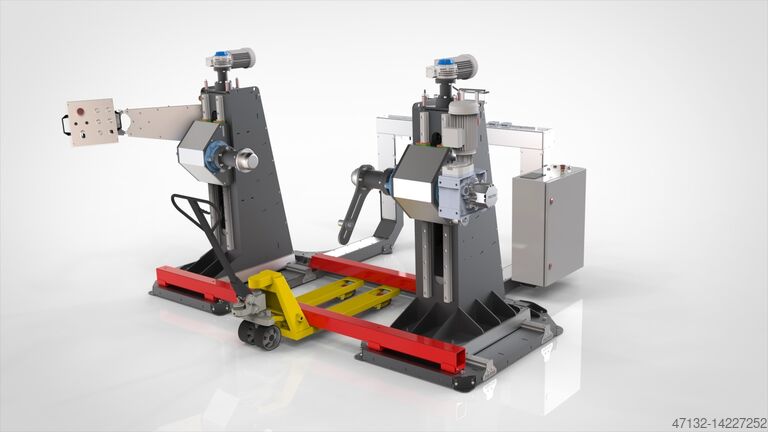

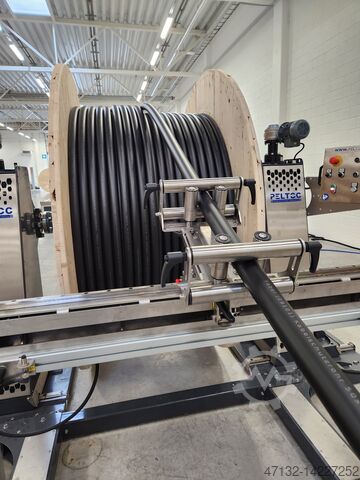

PELTOC HOHL 2400

PELTOC drum winder is developed more then 10 years different pipe and hose winding solutions development experiences. There has been used only solutions what have been worked a years and been proved by self. Peltoc develop all produced machines only quality producer and all over world widely available standard components, considering on development highest service factory, minimal wear and service parts, lowest energy consumption and thanks for that we can ensure longer lifetime and more reliable solutions.

Producer: PELTOC OÜ
Model: HOHL 2400
Maximum drum rotation speed: 1 - 30 RPM (Option up to 200RPM)
Maximum winding speed m/min: 0 - 200m/min. (Depends from drum inside diameter)
Maximum full load drum weight: 1700 kg (Option up to 4000Kg)
Maximum drum outside diameter: 2400 mm (Option up to 4000mm)
Minimum drum diameter to lift from floor: 1000 mm (Option from 600mm)
Maximum drum outside width: 1250 mm
Minimum drum outside width: 730 mm ( Option to 300mm. Need to order extra spacers for narrower drums)
Drum center hole diameter: 000 mm (For each client size)
Compressed air: Not needed!
Electricity: 400V / 50 Hz / 3 Faze.
Machine have 16A plug
Weight: 1345 Kg
Gusdsqwg Hyspfx Ah Hoh
Dimensions: 2250 x 3100 x 1882 mm (L x W x H)
