מזאק קוויק טרן 10

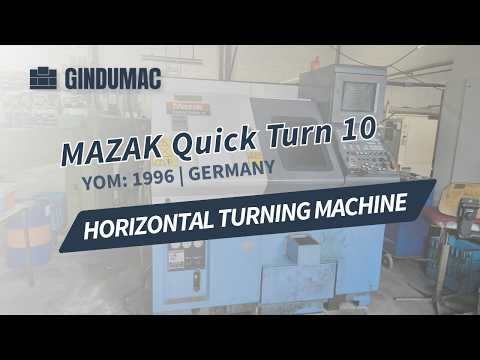

Mazak Quick Turn 10

CNC Lathe manufactured in 1996. This Mazak Quick Turn 10 features a maximum turning diameter of 160 mm and a turning length of 256 mm. It is equipped with a robust 8-station drum turret and a main spindle speed of up to 6,000 rpm. If you are looking to get high-quality turning capabilities, consider the Mazak Quick Turn 10 machine we have for sale. Contact us for further details.

- Model Designation: Quick Turn 10 (Nameplate: QTN-10)- Year of Construction: 1996- Control Unit: Mazak MAZATROL T PLUS- Total Operating Hours (Gesamt / Betr. Zeit): 26,800 h 00 m 35 s- Automatic Machining Hours (Aut. Zers.): 9,151 h 11 m 30 s- Automatic Cycle Time (Aut. Abla.): 9,369 h 25 m 11 s- Pure Cutting Time (Rei. Zers.): 5,736 h 15 m 38 s- Max. Turning Diameter: 160 mm- Circumferential / Swing Diameter: 300 mm- Turning Length: 256 mm (Z-travel 290 mm)- Tool Turret: 1 Turret, 8-station drum turret- Tool Clamping: Block holder, shank 20 x 20 mm- Main Spindle Speed: Up to 6,000 rpm- Spindle Nose: A2-5- Spindle Bore: 50 mm- Drive Power: 7.5 kW- Bar Capacity: Ø 42 mm (Standard chuck 6" / 165 mm)- Tailstock: None visible / to be confirmed on inspection (optional MK 4)
Psds Agvl Topfx Afhsrc

Technical Specification
Counter Spindle No
Driven Tools No
