מרכז CNC לניקוב, קידוח וחתך להבה

Ficep TIPO B254

FICEP TIPO B254 - CNC PUNCHING, DRILLING & THERMAL CUTTING CENTER | YEAR 2015
The Ficep Tipo B254 is a CNC-controlled punching, drilling and thermal cutting center for the complete processing of steel plates and flat products in a single pass. Punching, drilling, countersinking, tapping, marking and thermal cutting via plasma and oxy-fuel are carried out on one machine without intermediate handling.
CONDITION
Used - technically sound. The machine is currently in productive operation and CAN BE INSPECTED UNDER POWER (by appointment).
Handover as preferred: directly from ongoing production (cleaned and serviced) or - at additional cost - reconditioned by ASM. Details on the technical condition are disclosed individually upon serious interest.
FUNCTION & APPLICATION
The system combines three processing units in one CNC-controlled line: hydraulic punching unit (1000 kN), drilling head (20.1 kW) and thermal cutting unit with plasma torch (Hypertherm HPR 260) plus oxy-fuel torch. All processes run via the Mitrol CNC as automated machining cycles; the machine processes steel plates up to 2540 x 6000 mm.
Typical applications: structural steel fabrication, structural engineering and prefabrication of gusset plates, end plates and connection plates.
Redpfx Asxn T H Djfhjch
TECHNICAL DATA
- Machine type: Automatic CNC punching and thermal cutting system for plates
- Year: 2015 | Serial number: 34201 | Machine weight: 24,000 kg
- Working height: approx. 1,090 mm | Max. positioning weight (plate): 5,000 kg
- Max. plate size: 2540 x 6000 mm | Min. plate width: 508 mm
- Punching force: 1000 kN | Stripping force: 100 kN | Punching tools: 8
- Max. punch diameter: 32 mm | Max. punching thickness: 20 mm
- Drilling heads: 1 | Drilling tools per head: 8
- Max. drilling diameter: 40 mm | Max. drilling thickness: 100 mm
- Spindle power: 20.1 kW | Max. spindle speed: 4000 rpm
- Plasma torches: 1 | Oxy-fuel torches: 1 | Plasma source: Hypertherm HPR 260
- Max. plasma cutting thickness: 35 mm (pierce start) / 60 mm (edge start)
- Max. longitudinal feed speed: 30 m/min
- CNC control: Mitrol CNC (master/slave), online remote diagnostics
- Processes: punching, drilling, countersinking, tapping, milling, marking, scribing, oxy-fuel and plasma cutting
Min. plate length, max. overall material thickness and cross positioning speed are confirmed during inspection.
SCOPE OF DELIVERY
- 1 x Ficep Tipo B254 plate processing center (year 2015)

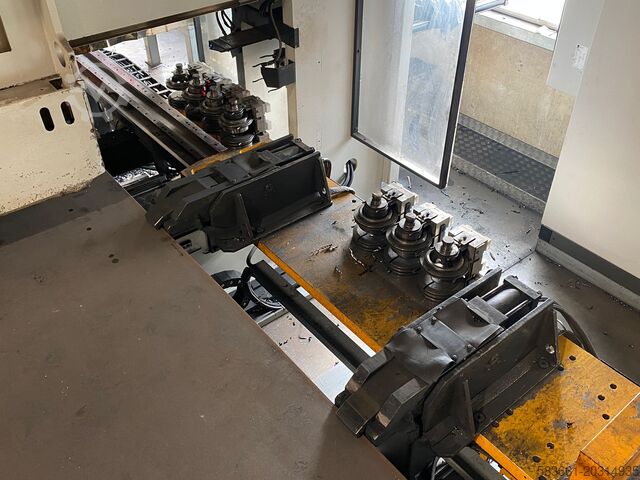

- 1 x Hydraulic punching unit 1000 kN with 8-position tool changer
- 1 x Drilling unit 20.1 kW with 8-position tool changer
- 1 x Plasma cutting torch | 1 x Oxy-fuel cutting torch
- 1 x Hypertherm HPR 260 plasma cutting system
- 1 x Marking unit (configuration to be confirmed during inspection)
- 1 x Chip conveyor
- 1 x Donaldson Torit dust extraction system | 1 x Punching tool set
LOGISTICS & LOCATION
Location: Ulft (Netherlands), directly at the German border. Dismantling, transport, installation and commissioning by ASM by arrangement - individually calculated upon request.
ABOUT ASM
Arendsen Steel Machinery (ASM) specializes in Ficep structural steel machines. Further Ficep machines on request.
CONTACT / INQUIRY
Arrange a viewing under power | Price on request | Request a callback.
Sale exclusively to commercial customers (B2B).
