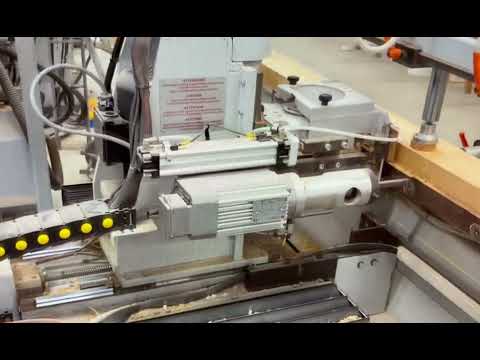

מקדחת עוקצים בת 3 צירים

CENTAURO BETA

VERY GOOD CONDITION
With lots of tools included ( See pictures attached )

X axis stroke 1100mm.
Y axis stroke 250mm. Max. depth of cut 120mm (depending on chisel size)
Z axis stroke 100mm Max. workpiece height of 120mm.
Lodpfx Aao Afb Iuexsru
All movements on re-circulating ball and screw drive with brushless motor
Max. workpiece width 200mm (wider on request).
Max. swing chisel thickness 20mm.
Min . slot length 25mm approx (with swing chisel)
Min. slot thickness 6mm.
3 vertical pneumatic clamps.
3 horizontal pneumatic clamps.
4 hp main motor.
'Power 1000' touch screen graphic controller with 99 programs each with 50 lines. USB key facility.
Programmable speed for cutting depth.
Anti splinter guards with air blowers and dust extraction points.1 x 80mm 1 x 60mm dia.
Working table dimensions 1210mm x 215mm
Installed power 3.6kw. (std machine)
Air supply 6 bar / 470 l/min consumption.
ASK FOR LIVE VIDEO PRESENTATION ON WHATSAPP/FACETIME
