מרכז עיבוד רציף

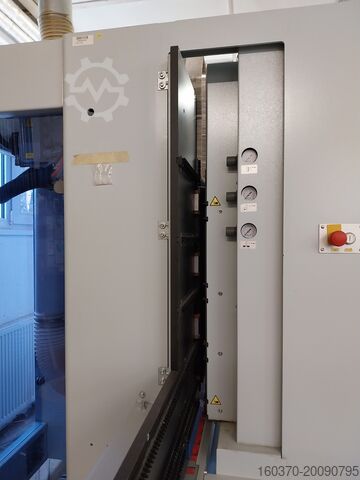

Weeke Optimat BHX 055

Manufacturer: Weeke
Model: Optimat BHX 055, fully refurbished with only approx. 1,000 operating hours

Year of manufacture: 2011
Weight: approx. 1,500 kg
Processing types: Drilling, milling, grooving, dowelling
Dimensions:
Overall length: approx. 3,500 mm
Overall depth: approx. 1,600 mm
Overall height: approx. 1,950 mm

Footprint: Very compact (approx. 5 m²)

Working area X: approx. 3,050 mm
Working area Y: approx. 850 mm (Workpiece can be 1,090 mm in Y = Through-feed dimension)
Working area Z: approx. 60 mm
Drilling head vertical: 13 spindles
Drilling head horizontal: 6 spindles (4x X, 2x Y)
Grooving unit: Integrated, for back panel grooves (X direction)
Milling spindle: 3.2 kW, max. 18,000 rpm
Psdpoxgd Snjfx Adierc
Tool change: Manual
Material feed: Automatic feed roller with workpiece detection
