Planetary type concrete mixer Planetary type concrete mixer

Contact Us 24/7 for Planetary Concrete Mixers for Sale

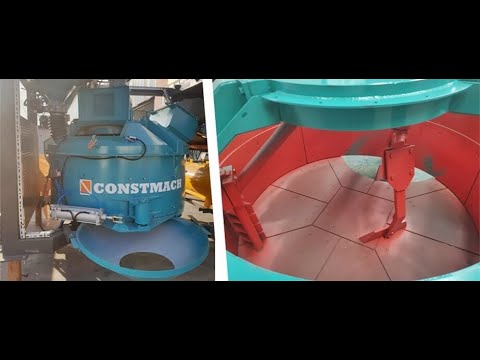

The Constmach planetary concrete mixer series stands out in the industry by offering solutions suitable for projects of all sizes. The CPLN series is available in a wide range of loading capacities, from 0.5 to 2, designed to meet every user's needs. These mixers are equipped with high-quality motor options and durable materials, ensuring impressive performance even in long-term and demanding applications.

Each model offers maximum durability with specially designed Hardox 450 side wear plates and ST 52 bottom wear plates. Additionally, the Ni-Hard mixing arm wear plates, varying from 25 mm to 30 mm, provide excellent resistance even under continuous operating conditions. The CPLN series is developed to deliver superior mixing and durability even in the most challenging environments.

User-friendly features such as the hydraulic discharge door and safety sensor-equipped maintenance cover enhance both operational safety and ease of use. These features maximize operational efficiency while simplifying maintenance processes. Constmach's planetary concrete mixer series sets a new standard in the industry in terms of durability, efficiency, and user safety.
Codpfx Asudyuxja Hsrh

By combining technology and innovation, the CPLN series offers reliable and efficient performance in all your projects. These carefully designed mixers provide ideal solutions for your long-term investments, contributing to the success of your projects.

Technical Specifications of the CPLN - 0.5 Model Planetary Concrete Mixer

Loading Capacity: 750 lt
Fresh Concrete Capacity: 625 lt
Compacted Concrete Capacity: 500 lt
Motor Power: 15.5 kW
Side Body Wear Plates: 10 mm Hardox 450
Bottom Wear Plates: 10 mm ST 52
Mixing Arm Wear Plates: 25 mm Ni-Hard
Hydraulic Discharge Door: Present
Safety Sensor-Equipped Maintenance Cover: Present
Technical Specifications of the CPLN - 0.75 Model Planetary Concrete Mixer

Loading Capacity: 1,000 lt
Fresh Concrete Capacity: 875 lt
Compacted Concrete Capacity: 750 lt
Motor Power: 30 kW
Side Body Wear Plates: 10 mm Hardox 450
Bottom Wear Plates: 10 mm ST 52
Mixing Arm Wear Plates: 25 mm Ni-Hard
Hydraulic Discharge Door: Present
Safety Sensor-Equipped Maintenance Cover: Present
Technical Specifications of the CPLN - 1 Model Planetary Concrete Mixer

Loading Capacity: 1,500 lt
Fresh Concrete Capacity: 1,250 lt
Compacted Concrete Capacity: 1,000 lt
Motor Power: 45 kW
Side Body Wear Plates: 15 mm Hardox 450
Bottom Wear Plates: 10 mm ST 52
Mixing Arm Wear Plates: 25 mm Ni-Hard
Hydraulic Discharge Door: Present
Safety Sensor-Equipped Maintenance Cover: Present
