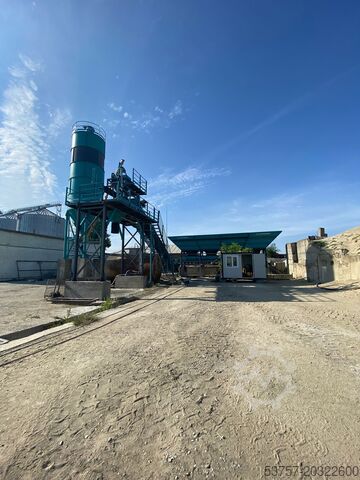

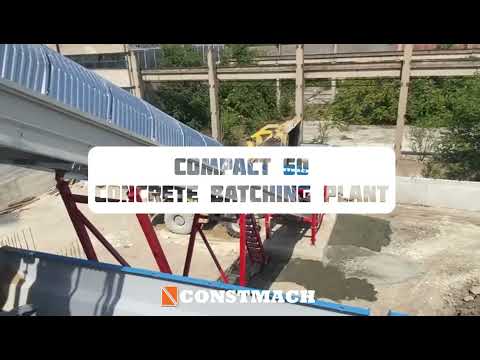

CONSTMACH Compact Concrete Plant with Belt 60 M3/H

CONSTMACH Compact-60 is a fully automatic compact concrete plant specially designed for projects requiring high production performance in limited spaces. Despite its compact design, it meets the needs of medium and large-scale projects with a production capacity of 60 m³/h. Thanks to its modular and ergonomic design, it requires minimal site preparation; it can be easily installed on a flat surface.

The aggregate bunker can be positioned in a linear arrangement as in stationary concrete plants or in a square layout as in mobile plants. When the square bunker option is chosen, the Compact-60 can be transported in a single 40 ft. OT container, offering significant advantages in transportation and installation costs. Manufactured in compliance with CE standards, the Compact-60 offers a long-lasting and low-maintenance system thanks to its high-quality components.

Complex automation processes are fully automated using SIEMENS – SCHNEIDER brand electronic components and advanced PLC control systems. The user-friendly software interface allows for easy control at every stage of the production process. The Compact-60 delivers high performance in ready-mix concrete, dry concrete, or precast production with twin-shaft, single-shaft, pan, or planetary mixer options.

Belted Compact-60 - Compact Concrete Plant Technical Specifications

Production Capacity: 60 m³/h
Transport Position Dimensions: 13 (L) x 2.3 (W) x 2.3 (H) m (square bunker)
Weight: 28 tons
Total Motor Power: 105 kW
Required Generator Power: 125 kVA
Mixer Options: Pan – Single Shaft – Twin Shaft – Planetary
Working Area: 300 m²
Aggregate Storage Bunker: 4 x 15 m³
Aggregate Weighing Bunker: 1.5 m³
Aggregate Weighing Belt: 800 x 11,100 mm
Aggregate Transfer Belt: 800 x 22,000 mm
Mixer Wet Concrete Volume: 1 m³
Cement Weighing Bunker: 600 kg
Water Weighing Bin: 300 liters
Additive Weighing Bin: 20 liters
Air Compressor: 300 liters – 5.54 kW
Ijdpexphlkefx Aaqjbc
Cement Silo: 50 – 500 ton capacity options
Control Type: Fully Automatic

Why Choose the Belted Compact-60 | Compact Concrete Plant?

CONSTMACH Belted Compact-60 offers solutions to all the requirements of modern construction sites with its compact design and high production efficiency. Its easy transportability, low operating cost, and quick installation feature provide investors with time and cost advantages. European-made components used in all electrical and automation systems guarantee a long-lasting and reliable production process. Manufactured with CONSTMACH's more than 20 years of engineering experience in the industry, the Compact-60 is the smartest choice that combines quality, durability, and performance.

What Do We Do as Constmach?

Constmach is a leading machine manufacturer serving the construction and mining industries with a wide range of products. Our product portfolio includes concrete block making machines, stationary and mobile concrete plants, stone crushing machines, stone crushing and screening plants, sand washing machines, sand making machines, asphalt plants, conveyor belt systems, jaw crushers, and mobile crushing plants. With its high quality standards, innovative production approach, and customer-focused solutions, Constmach stands out as a reliable brand in both national and international markets. Our products continue to be the preferred choice of industry professionals due to their durability, efficiency, and long-lasting performance.
